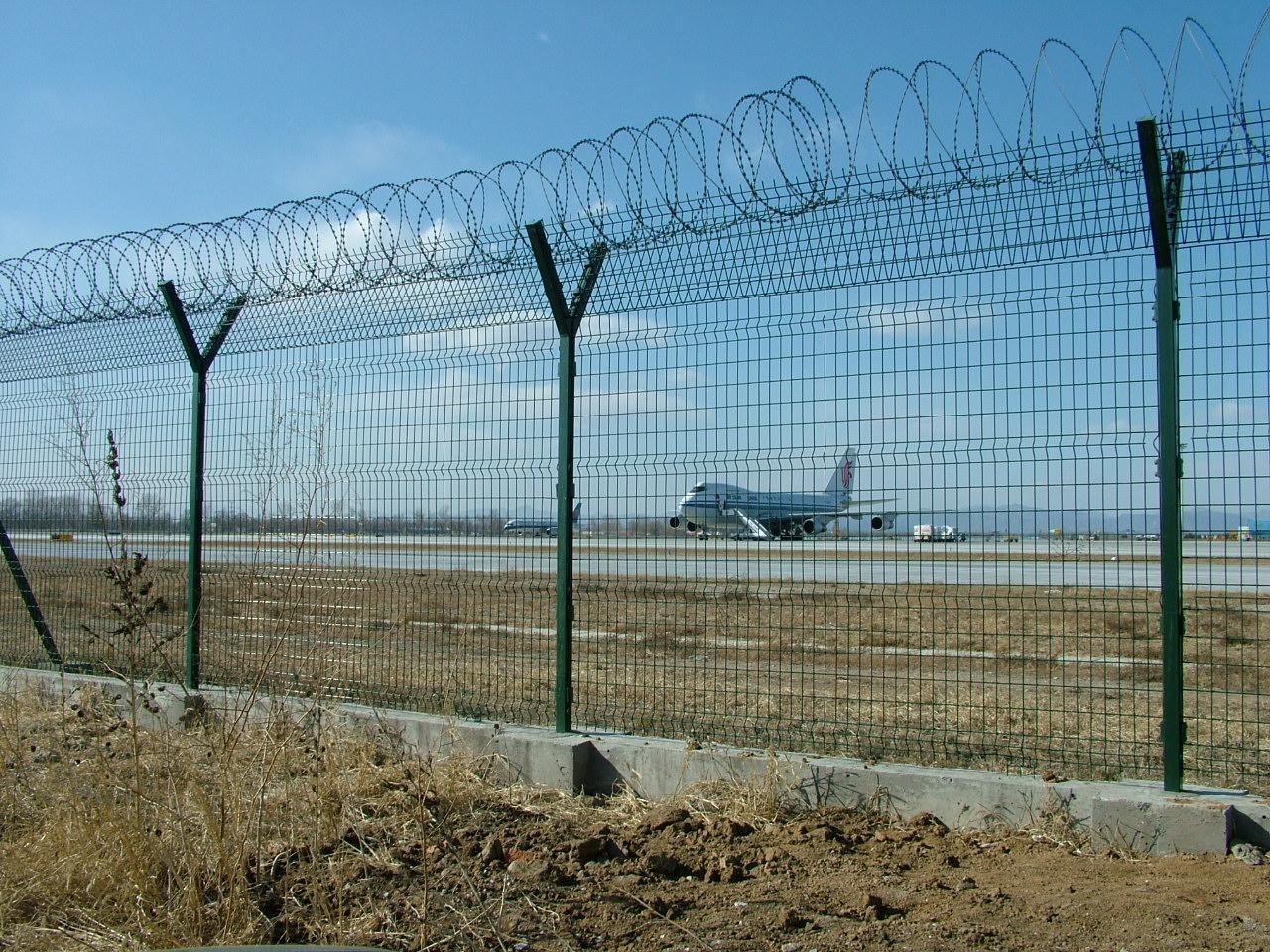

Airport fence is called by its application, it is a derivatives of common welded mesh panel, and on the top of airport fence it has V shape mesh panel and security razor wire to enhance the security. This type of airport fence is widely used around the airport all over the world, also as as military fence and harbor fences.
The fence panel is welded by galvanized wire, and then bend the V rigid, the last process is polyester powder coating, it is also named powder spray. The Y post is welded by square tube. The most common top razor wire is BTO-22.
Standard color:
Features:
• Not easy to do Installation
• Reasonable cost
• Nice looking
• Dark Green color --RAL6005
• Looks professional when used in Airport
• Anti jump over
Technical:
Large panel
| Width : | 2.50m, 2.75m, 3.0m |
| Height: | 2.03m, 2.23m, 2.43m, 2.63m |
| Mesh: | 30x70mm, 50x100mm, 50x150mm |
| Wire thickness: | 4.0mm,4.5mm,5.0mm |
| Rigid V: | 4, 5 |
| Finish: | Galvanized and powder coated |
| Nos. of brackets | 4, 5, 6 |
V panel
| Width : | 2.50m, 2.75m, 3.0m |
| Height: | 0.53m, 0.63m, 0.73m |
| Mesh: | 30x70mm, 50x100mm, 50x150mm |
| Wire thickness: | 4.0mm,4.5mm,5.0mm |
| Rigid V: | 2 |
| Finish: | Galvanized and powder coated |
| Nos. of brackets | 2 |
Post
| Section size : | 60x60mm, 80x80mm |
| Wall thickness: | 2.0, 2.5, 3.0mm |
| Overview height: | 2700+530mm, 2900+530mm, |
Razor wire
| Outside: | 500mm, 600mm, 700mm |
| Blade thickness: | 0.5, 0.32mm |
| Core wire: | 2.5, 2.25mm |
| Finish: | Galvanized |
Accessories:
• 2 pcs of post plastic rain hats
• Big Plastic Clamps For Post and Big Panel with bolts and nuts
• Small Plastic Clamps For Post and V Panel with bolts and nuts
• Clips for Big panel and V panel
• Tie wire for V panel and razor wire
Packing:
Mesh panels: Metal pallet wrapped with cardboard plate and then wrapped with plastic film(if size are not suitable for making pallet, will wrapped with bubble wrap and loading in bulk after getting the approval of client);
Post: Wrapped with PP bags, then loading in bulk;
Accessories: Cardboard box;
Special request on packing is available.
