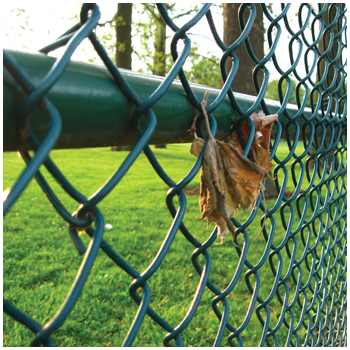

PVC coated chain link fence is fabricated with PVC coated wire, if client need PE wire, we can also supply. It has beautiful looks and stronger anti rust. This is widely used as sport fence, road fence, schools, airports, also public buildings, factories, workshops, parks, and military sites.
Features:
• Widely used
• Cost effective
• Nice looking
• Strong anti rust and anti corrosion
Technical - Pre galvanized + Plastic coated:
Mesh rolls
| Height : | 1.2m, 1.5m, 1.8m, 2.0m, 2.1m, 2.4m, 3.0m |
| Length: | 10m, 15m, 18m, 20m, 25m, 30m |
| Mesh: | 50x50mm, 55x55mm, 60x60mm, 65x65mm, 75x75m |
| Wire thickness: | 1.70/2.50mm, 1.90/2.65mm, 2.24/3.15mm, 2.50/3.55mm, 3.0/4.0mm, 3.55/4.75mm |
| Edge style: | Twist or knuckle |
| Finish: | PRE-EDG+PC, PRE-HDG+PC, PRE-GALFAN+PC |
Post
| Section view Size | P1-CHS | P2-RSA | P3-SHS | ||
| Intermediate: | Ø48.3 | Ø60.3 | 40x40 | 50x50 | 40x40 |
| Strengthen/ Pull/ Corner: | Ø60.3 | Ø73.0/Ø76.2/Ø88.9 | 50x50 | 60x60 | 50x50 |
| End: | Ø60.3 | Ø73.0/Ø76.2/Ø88.9 | 50x50 | 60x60 | 50x50 |
| Struts/ Support post/ Brace: | Ø33.7/Ø42.4 | Ø42.4 | 40x40 | 50x50 | 40x40 |
| Gate: | Ø88.9*3.0 | Ø88.9*3.0 | SHS80x80 | SHS80x80 | SHS100x100 |
| Wall thickness: | 2.0-6.0mm | 2.0-6.0mm | 4.0-6.0mm | 4.0-6.0mm | 2.5-6.0mm |
Accessories:
• Steel post rain hats
• Brace band
• Tension band
• Wire tensioner
• Short winder
• Tension bar
• Tension wire
• Stirrup wire
• Tie / binding wire
• Sleeve
• Eyetop
• Single extension arm, double extension arm
• Razor wire, barbed wire
• Tension rod
• Turnbuckle
Packing:
Mesh rolls: in bulk or steel pallet;
Post: Wrapped with PP bags, then put on pallet, wrapped with plastic film;
Accessories: Carton box;
Special request on packing is available.
