Chain link fence (also referred to as wire netting, wire-mesh fence, chain-wire fence, cyclone fence, hurricane fence, or diamond-mesh fence) is one kind of mostly and widely used fence in the world. It is a type of woven fence usually made from galvanized or PVC coated steel wire. The wires run vertically and are bent into a zig-zag pattern so that each "zig" hooks with the wire immediately on one side and each "zag" with the wire immediately on the other.
Features:
• Widely used
• Cost effective
• Nice looking
• Strong anti rust and anti corrosion
Technical - Galvanized:
Mesh rolls
| Height : | 1.2m, 1.5m, 1.8m, 2.0m, 2.1m, 2.4m, 3.0m |
| Length: | 10m, 15m, 18m, 20m, 25m, 30m |
| Mesh: | 50x50mm, 55x55mm, 60x60mm, 65x65mm, 75x75m |
| Wire thickness: | 2.5mm, 3.0mm, 3.55mm |
| Edge style: | Twist or knuckle |
| Finish: | HDG |
Post
| Section view Size | P1-CHS | P2-RSA | P3-SHS | ||
| Intermediate: | Ø48.3 | Ø60.3 | 40x40 | 50x50 | 40x40 |
| Strengthen/ Pull/ Corner: | Ø60.3 | Ø73.0/Ø76.2/Ø88.9 | 50x50 | 60x60 | 50x50 |
| End: | Ø60.3 | Ø73.0/Ø76.2/Ø88.9 | 50x50 | 60x60 | 50x50 |
| Struts/ Support post/ Brace: | Ø33.7/Ø42.4 | Ø42.4 | 40x40 | 50x50 | 40x40 |
| Gate: | Ø88.9*3.0 | Ø88.9*3.0 | SHS80x80 | SHS80x80 | SHS100x100 |
| Wall thickness: | 2.0-6.0mm | 2.0-6.0mm | 4.0-6.0mm | 4.0-6.0mm | 2.5-6.0mm |
Accessories:
• Steel post rain hats
• Brace band
• Tension band
• Wire tensioner
• Short winder
• Tension bar
• Tension wire
• Stirrup wire
• Tie / binding wire
• Sleeve
• Eyetop
• Single extension arm, double extension arm
• Razor wire, barbed wire
• Tension rod
• Turnbuckle
Packing:

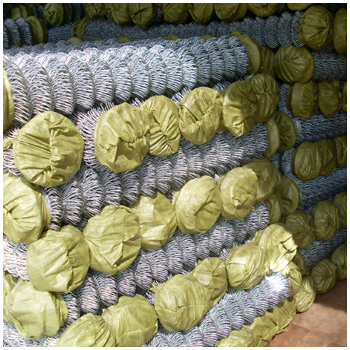

Mesh rolls: in bulk or steel pallet;
Post: Wrapped with PP bags, then put on pallet, wrapped with plastic film;
Accessories: Carton box;
Special request on packing is available.
